食品容器のパンチングマシン
Created with Pixso. LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device

LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device

ブランド名: LIKEE
モデル番号: LK-T80
MOQ: 1セット
価格: $45000-75000/set
配達時間: 標準マシンは30日です。カスタマイズされたマシンは契約に基づいています
支払条件: T/T、LC
詳細情報
起源の場所:
中国上海
証明:
ISO 9001, ISO14001, SGS, CE Certificate
モデル:
80ton
カテゴリタイプ:
食品容器パンチングマシン
容器の形:
丸い方
コア関数:
自動シャットダウン、生産カウント
応用:
食品容器のパンチとフォーム
給餌システム:
自動
精度をカウントします:
エラー≤1ユニット/1000単位
資格:
CE,SGS,ISO9001,ISO14001
該当する材料モデル:
3003H24、8011H22、3004H24
作業速度:
35-70ストローク/時間
生産速度:
12000pcs/hour
電子plc:
三菱
モーターブランド:
シーメンス
電気:
シュナイダー
パッケージの詳細:
木製のケース
ハイライト:

automatic food container punching machine

,

food container machine with quick mold changer

,

LK-T80 food container punching equipment

製品の説明

LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device





Product Description:



LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 0



LK-T80 is an automatic food container punching machine with a quick mold changing device, mainly solving the problem of "slow mold change and delayed production schedule during multi-spec production" in aluminum foil lunch box factories. Equipped with a quick mold changing structure, it requires no whole-machine disassembly or repeated calibration; workers can complete mold change in a few minutes according to the visual guide — for example, switching from punching square lunch boxes to round pans without waiting for half a day. During daily production, aluminum foil plates are automatically fed and punched, and the formed containers have smooth edges, no need for secondary trimming, enabling continuous batch production. Whether making regular-sized aluminum foil lunch boxes or customized food containers, you can start production quickly by changing the corresponding mold, which is very suitable for factories that need to frequently switch product specifications, improving efficiency and reducing manual errors during mold change



Technical Parameters:



Core Functions Automatic Shutdown, Production Counting
Container Shape Squrar Round
Certification Items CE, SGS, ISO9001, ISO14001
Applicable Material Model 3003H24, 8011H22, 3004H24
Processing Function Punching Forming Cutting
Stroke 240mm Fix
Warranty 1 Year
Low Voltage Electrical Schneider
Main Motor Siemens
Capacity 3 Cavities



Functions:



LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 1



1.Quick Mold Change: No whole-machine disassembly, mold change completed in minutes according to guide, reducing downtime waiting time;​
2.Automatic Production: Fully automatic from feeding, punching to molding, no manual intervention, saving labor;​
3.Multi-mold Adaptation: Can install molds of different specifications to make various food containers like lunch boxes and pans, no need to change equipment;​
4.Stable Precision: No recalibration needed after mold change, small punching size error, high product consistency;​
5.Visual Operation: Step-by-step guide for mold change, new workers can learn quickly, reducing training costs.

  1.

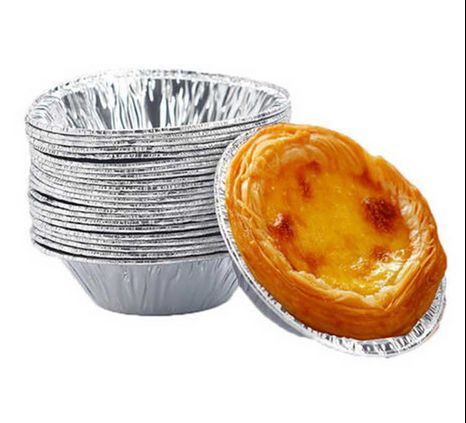

Sample:



LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 2LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 3

LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 4LK-T80 Food Container Punching Machine Automatic Equipped with Quick Mold Changing Device 5



FAQ:



Q: Is mold change really completed in a few minutes? How many people are needed?​
A:
One person can operate; according to the visual guide, removing the old mold and installing the new one takes less than 5 minutes for regular molds, no complex tools needed.​


Q: When changing molds of different specifications, do machine parameters need to be readjusted?​
A:
No, the quick mold changing device has a positioning function; parameters are automatically matched after installing the new mold, no need for workers to test repeatedly.​


Q: What's the maximum number of mold specifications it can adapt to?​
A:
As long as the mold installation size meets the machine standard, all regular food container molds can be installed, no fixed quantity limit.



Q: If mold change is frequent every day, will the machine break down easily?​
A:
The mold change structure is designed for high-frequency industrial use; with daily cleaning and lubrication, its service life is the same as the main machine, no need to worry about damage from frequent mold change.​


Q: After stopping and restarting, will it affect the size of previous pans?​
A:
No, it has a memory function, automatically uses previous parameters after restart, size error ≤0.1mm, no need for recalibration.


Q: What needs to be focused on in daily maintenance?​
A:
Regularly clean the aluminum foil residues on the mold and check the wear of the punching parts; maintenance is simple and does not delay production.
